UI-View remains one of the most popular APRS programs (as of 2015) even though the author became a Silent Key in 2004 and there has been no further development of the program

UI-View 16 and UI-View 32 were written by Roger Barker, G4IDE/SK. Both are packet-based position plotting programs similar to other APRS software. Both can use AGWPE as a "host".  You can download both at http://www.apritch.myby.co.uk/uiv32.htm

The basic UI-View program, also called UI-View 16, is a free ware program that has slightly less capabilities than UI-View 32 -- see "UI-View 32 vs UI-View 16" below. UI-View 16 will not run on newer 64-bit Windows systems.

Since Roger's death in September 2004, registration for either program is free, however, in lieu of the former registration fee of Β£10 (about $15 US), you are asked to make a suitable donation to a cancer organization of your choice. Registration gives you the right to send APRS position reports to the internet and to upgrade from UI-View 16 to UI-View32. To register, do not contact Roger's address as the program or his web site may suggest; instead use the URL below to find the name of someone who can issue you a registration number:

http://www.apritch.myby.co.uk/uiv32.htm

Simply state your request for a registration number in an email that includes your first and last name on one line, plus your callsign on another line.

A. Basic UI-View Setup

Here's how to configure UI-View to work with AGWPE -- it's really not hard. Roger did a great job in explaining it all in the UI-View Help. (Next two screen shots are from UI-View 16.)

  • With AGWPE running, start UI-View. First, if you only have one sound card in your system, disable sounds in UI-View, lest UI-View's use of the sound card interferes with AGWPE's use of the card. On UI-View's top menu bar, select "Options", then uncheck "Sounds Enabled".

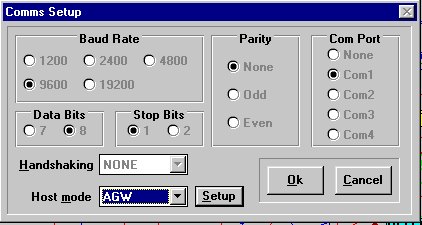

  • Next, on the top menu bar, select Setup, then Comms Setup. The resulting window should look like the graphic below. Set the Host Mode for AGW. (UI-View has context sensitive Help, so press F1 to call up help for this window.)

Screen shot<-- Click to see larger image


Then press the Setup button.

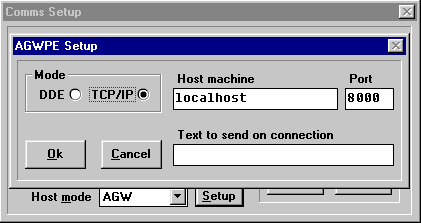

  • UI-View 16: On the resulting AGWPE Setup window -- for UI-View 16 only --  for mode, you can select either DDE or TCP/IP. Press F1 again to call up a very informative UI-View Help dialogue about AGWPE.

Screen shot <-- Click to see larger image
Screen shot form UI-View 16

UI-View 16 will work in DDE mode just fine with AGWPE, but the advantage of using TCP/IP mode is that you could connect UI-View to an instance of AGWPE running on another PC accessible via a network or the internet.

For TCP/IP to work with UI-View 16:

  • you must running AGWPE version 2000.15 or later

  • you must have the Windows Winsock 2 update if you are running Windows 95 or Win98 OEM (it is automatically installed in Win 98SE, Win2000 and WinXP).

  • AGWPE's Winsock TCP/IP interface must be enabled: On the AGWPE menu, click once on Setup Interfaces. On the resulting WinSock Interface tab, make sure the Enable Winsock TCP/IP Application Interface box is check marked .  Click in the box to check/uncheck it. Note the TCP port on that screen -- the default is 8000.

  • The TCP port specified in AGWPE (default is 8000) must be specified in UI-View's AGWPE Setup window (see screenshot above.)

  • if you run a firewall program (such as Zone Alarm), then port 8000 must be open and accessible

You can also configure UI-View 16 to connect to an instance of AGWPE running on a different computer on your home network or any where on the internet. In that case, enter the IP address of the AGWPE computer in the "Host Machine" field, i.e. instead of "localhost".  See the AGWPE Over a Network page.

After you have made your selection, press the OK button on both the AGWPE Setup and Comms Setup windows and UI-View should be working with AGWPE and receiving packets.

UI-View 32: After you press the Setup button, you will see the AGWPE Setup Screen (it's different from the one in UI-View 16):

Screen Shot<-- Click to see larger image

This screen is similar to the one in UI-View 16 in that you must specify the port and IP address of the computer running AGWPE. Use 127.0.0.0 (or localhost) if AGWPE is running on the same computer machine as UI-View.

In addition, UI-View 32 has additional options. As the screen suggests, press F1 in UI-View to read the context-sensitive help about this screen and how to configure any advanced options you may need:

Password and text to send on connection - used to connect to an instance of AGWPE running on a different computer on the network or internet and that instance of AGWPE has implemented user name and password security .  Note that UI-View uses your callsign as the "User Name", so AGWPE must have your callsign registered in its exceptions list.

Multiple Systems - used to connect to multiple instances of AGWPE; see Multiple Systems Option below

Remote - if you are connecting to an AGWPE instance outside of your local area network, i.e. over the internet, then please check this option so that any traffic you send via ports on that remote system will have "TCPIP*" inserted in the packet's unproto path. This is to make sure that you don't appear as "local" to those who can hear the AGWPE radios, when in fact your UI-View station is actually many miles from the AGWPE radios.

Port Mask - used if AGWPE is configured for multiple radio ports. The mask lets you specify which ports to use and not to use for receiving; packets; see Port Masks below.

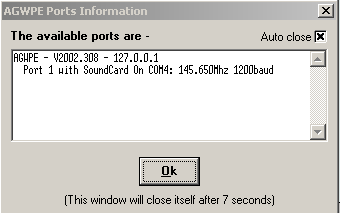

If UI-View links successfully to AGWPE, a UI-View window like that below should appear shortly after UI-View starts:

Screen shot    <-- Click to see larger image
UI-View 32 Screen Shot

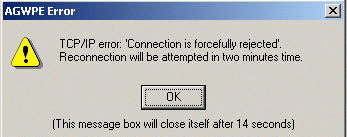

If UI-View has not linked successfully to AGWPE, you will see this message

Screen shot    <-- Click to see larger image
UI-View 32 Screen Shot

This means UI-View can't find AGWPE. Recheck all your TCP/IP settings in UI-View (see above) or in AGWPE:

B. Advanced UI-View 32 Options

1. Multiple Systems Option: Connecting to more than one instance of AGWPE

UI-View32 can connect to more than one instance of AGWPE. From the UI-View32 menu, select Setup and then Comms Setup, and then press the Setup button next to Host Mode: AGWPE.  Check mark the Multiple System choice and you will now have tabs for 2 AGWPE systems to configure. (Press F1 for UI-View Help!)  You can specify your own instance of AGWPE (running at 127.0.0.1, i.e. your computer) and a remote instance, or you can specify two remote instances.

If you want to connect to more than 2 systems, open the UIVIEW32.INI file and search for the [AGWPE] section. Under it, change the SYSTEM_COUNT= 2 parameter to the number of your choice (max. 16).

Roger Barker, the author of UI-View wrote:

"UI-View32 can simultaneously connect to more than one AGWPE system via TCP/IP. The default limits it to two systems (but that can be altered in UIVIEW32.INI). The ability to connect to multiple systems is entirely within UI-View32. It is not part of AGWPE, and you do not need to be running AGWPE locally in order to connect UI-View32 to one or more remote AGWPE systems.

The ports on the AGWPE systems will appear sequentially in UI-View32, so if you connect to two systems, one with three ports and one with two, the ports in UI-View32 will number from one to five.

The ports behave exactly as if they are all on one AGWPE system. So, for instance, you can configure the UI-View32 digipeater to have ports on different AGWPE systems, which gives the possibility of having an APRS digi with ports in different parts of the world.

You lose no functionality by connecting to multiple systems, so whatever you can do with an AGWPE port on a single system, you can do exactly the same thing with a port when you are using multiple systems.

Two "gotchas" -------------

1. When connecting to remote AGWPE systems, do not forget that AGWPE has "Winsock Interface Security".

2. UI-View32 uses AGWPE with KISS frames. It is a feature of AGWPE that the received KISS frames it sends to an application do not include frames transmitted by other applications using the same AGWPE system. So if you have this:

   AppA --------|
                      | AGWPE ------ radio(s) etc.
   AppB --------|

Then, using KISS frames, AppA will not see frames transmitted by AppB. (Of course, with APRS, it will see them if they are digipeated by radio back to you by another station.)

If that is a problem, then an easy work-round is to configure a loop-back port in AGWPE, and transmit the beacons from your UI-View32 systems both on the RF port(s) and on the loop-back port."



2. Port Masks: Specifying which AGWPE radio ports to use to receive packets

By default, UI-View receives* packets from all AGWPE radio ports. To change that, go to the UI-View Setup menu and then Comms Setup. When you select a host mode of AGWPE, a Setup button will appear to the right of AGWPE. Press that button that to bring up the AGWPE Setup window. Then press the Ports Mask button to bring up the AGWPE Port Mask Monitor window. Check or uncheck ports to control which AGWPE ports UI-View will use to receive data.

<--  Click for larger image

* To control which AGWPE ports will  transmit UI-View data, from the menu go to the Setup: Stations Setup window and the Unproto port field. For example to transmit only on the AGWPE port 1 radio (even if you have other ports/radios), enter .  To specify multiple ports, use a comma to list the ports, e.g. 1,2   Also, if you opt to use multiple port transmitting, also use the "beacon pause" feature so your radios do not transmit at the same time: from the UI-View Setup menu select Miscellaneous.


Hint: you can use UI-View's digipeat function to relay HF packets onto the VHF frequency by configuring AGWPE for 2 sound card ports (one for VHF, one for HF) and making a 2 port - 2radio cable. Then set up the digipeater function in UI-View to use the "Digi Routes" function: "1=2" , which means anything heard by UI-View on AGWPE port 1 would be digipeated on AGWPE port 2, and vice versa.

Note!  To make sure VHF traffic is not routed to HF (HF can't handle the load!), either:

  • configure the HF PTT port to an non-existent LPT or COM port (in AGWPE's Properties for Portx screen), so there is no PTT activation for the HF radio

  • do not include a TX audio or PTT cable on the cable going to the HF radio; use only an RX audio cable.


 UI-View 32  vs. UI-View 16

Other than for the fact that it is a true 32 bit app, the main advantages of UI-View 32 over UI-View 16 are:

1. The map refresh is faster than on the 16 bit version. On a K6-2/450, UI-View 32 will redraw at a rate of around 1,000 station icons a second.

2. UI-View 32 lets you connect to instances of AGWPE running on a different computer over the internet or a LAN.

3. With UI-View 32, you can opt to NOT connect to specific AGWPE radio ports. With UI-View 16 you have no option but to send and receive on all AGWPE radio ports.

4. UI-view 32 is an ActiveX server and provides a rich interface for external applications. Roger realized with his WinPack program that providing an open interface to encourage other software authors to write add-ons was a good idea in a ham radio application. UI-View32 takes the idea to a new level. If you have a look at these two sites, you can see some of the excellent add-ons that have been written for UI-View:

http://welcome.to/uiview

http://www.qsl.net/g7jgq/uitool.htm

An unregistered copy of UI-View 16 also has these further limitations:

  • You cannot input an APRServe (APRS packets via internet) validation number. If you log on to APRServe, it will always send the default validation number of "-1".  This doesn't stop you from using APRServe; it just means that no IGATEs will gate your traffic from the internet to radio.

  • You cannot use UI-View as an IGATE.

The downside of UI-View32 compared to the 16 bit version is that:

  • you have to register it, and
  • it needs a more powerful PC; a P120 with 32Mb is probably the minimum.

If you upgrade to UI-View32: DON'T install UI-View32 on top of UI-View(16), or you'll finish up with a big mess. They are separate program and by default they install into separate directories. There is absolutely no problem with having them both installed on the same PC. You can put your registration in them both, and, if you use AGWPE, you can even run them both at the same time.

Of course, if you want to uninstall UI-View(16), you can, and it won't delete your maps, which you can move or copy into the UI-View32 program folder. (NOTE - make sure you uninstall, not manually delete.)


C. Problems

  • For UI-View 32 or the TCP/IP option in UI-View 16 to work with AGWPE:

    • You must be running AGWPE version 2000.15 or later

    • You must have the Windows Winsock 2 update if you are running Windows 95 or Win98 OEM (it is automatically installed in Win 98SE, Win2000 and WinXP).

    • AGWPE's Winsock TCP/IP interface must be enabled: On the AGWPE menu, click once on Setup Interfaces. On the resulting WinSock Interface tab, make sure the Enable Winsock TCP/IP Application Interface box is check marked .  Click in the box to check/uncheck it. Note the TCP port on that screen -- the default is 8000.

    • The TCP port specified in AGWPE (default is 8000) must be specified in UI-View's AGWPE Setup window (see screenshot above.)

    • If you run a firewall program (such as Zone Alarm), then port 8000 must be open and accessible

    • If AGWPE is running on a different computer, you may need to enter a password to gain access to AGWPE, and AGWPE must have your callsign and password entered in its WinSock Interface Security access list.



  •  I have AGWPE running but when I try to start UI-View, I get this message:
    "
    An error occurred initializing AGWPE system 1.  Address Family is not supported.’”

    The TCP/IP protocol is not installed on your computer. Create a Dialup Networking (DUN) Connection in Windows (use a dummy telephone number) and the TCP/IP protocol will be installed automatically.


  • I get the message  "Connection is forcefully rejected".

    UI-View can't find AGWPE. One of the following things has happened:

    1. AGWPE wasn't running when you started UI-View.
    2. AGWPE doesn't have the Winsock interface enabled. From the AGWPE menu, select "Setup Interfaces" and on the default WinSock Interface tab, checkmark "Enable Winsock TCP/IP Application Interface".
    3. UI-View's AGWPE Setup is incorrect. See the top of this page and make sure the port and IP address of the AGWPE computer are specified correctly.
    4. You have a firewall that is blocking connections to the port and/or IP address of the AGWPE computer.


  • I'm running UI-View 16 and it works fine when I opt to use the DDE connection to AGWPE, but when I try the TCP/IP connection, I get the following error message: UI-View doesn't think your PC has TCP/IP installed. If it (TCP/IP) has (been installed), then please close down UI-View, rename the the WINSOCK.DLL in the UI-View directory to WINSOCK.NUL and restart UI-View.

    As the message says, look for the WINSOCK.DLL file in your UI-View 16 folder and rename it (so UI-View can't find it).


  • I'm running UI-View 32 and I seem to be connected to AGWPE but I'm not getting any packet reports from AGWPE even though I have confirmed that AGWPE is receiving and decoding packets.

    Make sure the Port Mask settings are correct. You must checkmark each AGWPE radio port which UI-View will use to receive packets. By default, port 1 is checked, but you may have de-selected it. See Port Masks above.


  • UI-View decodes some APRS packets - - - - and then it stops.  If I reset the properties window in AGWPE or I restart UI-View, I see two station icons pop up - - - and then it stops again. Also, I notice the packet audio frequency spectrum shifts to the right third of the Sound Card Tuning Aid screen (!!!).

    If your computer only has one sound card, both AGWPE and UI-View are using it and the speech and sound options in UI-View are creating a conflict with AGWPE's use of the sound card. The solution is to disable all the sound/speech options in UI-View. You can do that in the final versions of UI-View by un-checking the Sound Enabled option on the UI-View Options menu. This lets you to turn off all UI-View sounds in one go. If you're using a version of UI-View without that option, then you should update to the final UI-View version!
